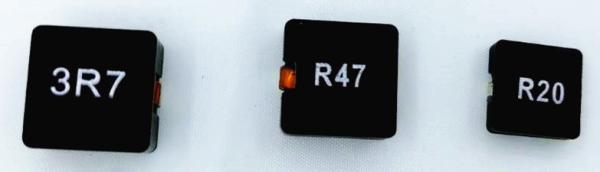

SMD inductor power supplier AC/DC DC/AC

Specification:

Material: Ferrite

Power: 1Watt~500Watt

Hi-Pot: 1.50KVrms

Working frequency: 20KHz~500KHz

Working Temperature: -20'C~+125'C

Applications

1. For smoothing circuit of DC-DC converter, as choke coil or chopper coil
2. Power lines of camcorder, LCD set, OA equipment, notebook computer, PDA
3. Notebook
4. Inkjet printer
5. Copying machine
6. ADSL modem
7. Cellular phone
8. Display monitor
9. Video tape recorder
10. Video camera
11. Color TV
12. Lighting and car electronics

FAQ

Q: How is your product quality and what is our warranty?
A: Excellent automatic equipment, experienced technician team, exclusive purchasing group,professional sales team, strict quality management systerm, all-section quality inspectionpersonnel.This is how we keep our quality highly assured.

All our products passed Green Partner ROHS certification.
Place order online and pay to the designated bank account to get full protection 100% payment protection,100% product quality protection,100% on-time shippment protection.
Q:What is our payment methods?
A: T/T, 30~50% deposit, and the balance paid before delivery.Support Western Union, L/C, D/P, MoneyGram, Paypal and so on.

Our company to applied the international advanced technologies, which is committed to R & D and production for the inductive element in different areas, it mainly used in Solar energy inverter, Switching power supply, Inverter DC welding machine, Industrial frequency induction heating, LED lighting, Household appliances, Medical and health care equipments, etc..

Our company has rich experienced R & D team, with the design and manufacturing of inductive components (Bel Fuse, Pulse, MeiXing), very familiar with the magnetic material and the international standards such as UL standard, in UL CLASS B, C insulation system, F grade, and is equipped with advanced testing equipment and solid design software as supported.

Careful management with the implementation of 7S, and our design team from photovoltaic inverter, switching power supply, inverter DC welding machine, industrial frequency induction heating, LED lighting, household appliances and ecological energy fields provide the best benefit cost of various design solutions and strong technical support.

The main production and processing equipment:
Single axis, four axis winding machine, twelve axis automatic winding machine.
The microwave coil self checking machine.
Full automatic production line,
Automatic jet printer,
Vacuum (limited) varnish machine,

To provide the following materials used and comply with safety regulations of the bobbin:
PET-FR530 DuPont E69578 (M)
Nylon 70G33L DuPont E41938 (M)
BASF A3X2G7 BASF E41871
T375J Taiwan: Changchun E59481 (S)
PM9630 Sumitomo E41429 (M)
PM9820 Sumitomo E41429 (M)

Test instrument:
The Agilent 4294A, E4980A, 4263B, and Chroma 3250 comprehensive precise LCR Measurement & analyzer.
The Wayne Kerr DC bias current source 3265B and precise magnetic element analyzer 3260B.
Hi-pot test (0~5KVac).
High temperature cycle test (-70 to 200 DEG C IEC60068-2-1/2-2/-2-30/-2-78 standard)
