500KHz SMD Power Inductors , Power Driver 220 Inductor Low Profile

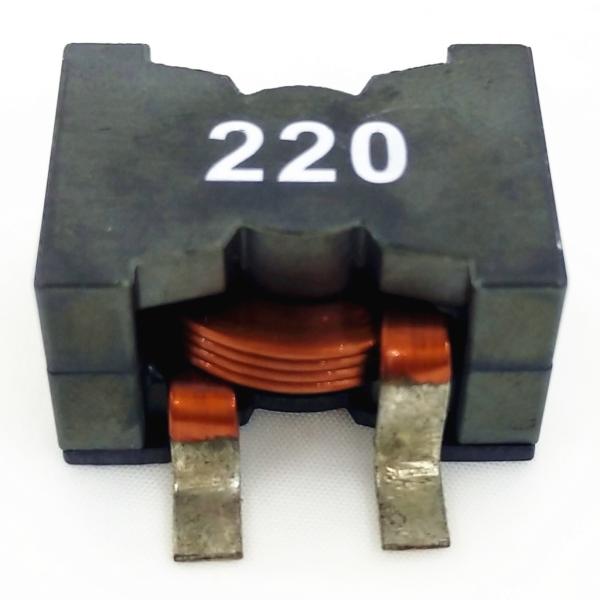

SMD 220 Inductor for power driver

Specification:

Material: Ferrite

Power: 20Watt~80Watt

Hi-Pot: 0.50KVrms

Working frequency: 20KHz~500KHz

Working Temperature: -20'C~+125'C

Features:

· Low profile .
· Magnetically shielded construction and low DC resistance.
· Ideal for a variety of DC-DC converter inductor applications.
· RoHS compliant.
· Halogen free.
· Suitable for large current.
· High reliability for automotive uses

Packing & Delivery

Packing

1. Standard export carton for the outer, pallet and foam for the inner.

2. Special protect carton for exporting product.

3. Customer's packaging is available.

Delivery

1. FedEx/DHL/TNT/UPS for samples.

2. Ocean or air transportation, International express for mass products.

3. FOB, CIF, CFR, EXW etc. are all ok.

4. Samples free, customers will have to pay for the samples' shipping charges.

5. Samples lead time generally is within one week.

6. Mass production lead time is around 3 weeks depending on transformer's type.

Our company to applied the international advanced technologies, which is committed to R & D and production for the inductive element in different areas, it mainly used in Solar energy inverter, Switching power supply, Inverter DC welding machine, Industrial frequency induction heating, LED lighting, Household appliances, Medical and health care equipments, etc..

Our company has rich experienced R & D team, with the design and manufacturing of inductive components (Bel Fuse, Pulse, MeiXing), very familiar with the magnetic material and the international standards such as UL standard, in UL CLASS B, C insulation system, F grade, and is equipped with advanced testing equipment and solid design software as supported.

Careful management with the implementation of 7S, and our design team from photovoltaic inverter, switching power supply, inverter DC welding machine, industrial frequency induction heating, LED lighting, household appliances and ecological energy fields provide the best benefit cost of various design solutions and strong technical support.

The main production and processing equipment:
Single axis, four axis winding machine, twelve axis automatic winding machine.
The microwave coil self checking machine.
Full automatic production line,
Automatic jet printer,
Vacuum (limited) varnish machine,

To provide the following materials used and comply with safety regulations of the bobbin:
PET-FR530 DuPont E69578 (M)
Nylon 70G33L DuPont E41938 (M)
BASF A3X2G7 BASF E41871
T375J Taiwan: Changchun E59481 (S)
PM9630 Sumitomo E41429 (M)
PM9820 Sumitomo E41429 (M)

Test instrument:
The Agilent 4294A, E4980A, 4263B, and Chroma 3250 comprehensive precise LCR Measurement & analyzer.
The Wayne Kerr DC bias current source 3265B and precise magnetic element analyzer 3260B.
Hi-pot test (0~5KVac).
High temperature cycle test (-70 to 200 DEG C IEC60068-2-1/2-2/-2-30/-2-78 standard)
